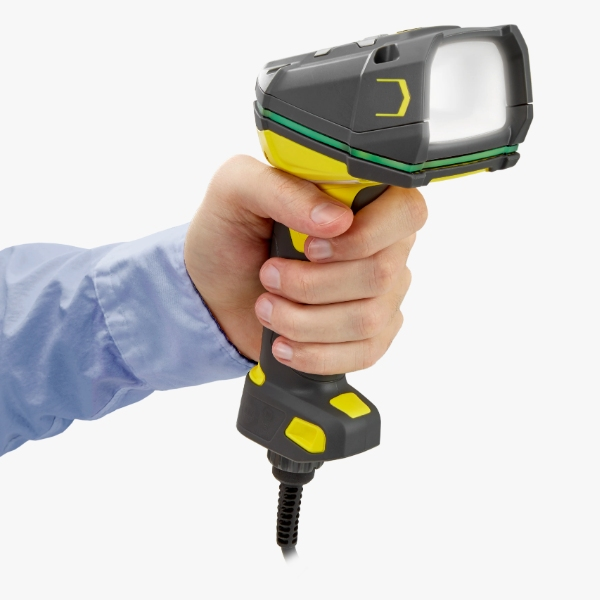

Introducing the DataMan 8700DQ Corded Handheld RS-232 Reader
Enhance your DPM applications with the reliable and efficient DataMan 8700DQ Corded RS-232 Handheld Barcode Reader. Engineered for strong DPM reading performance, robustness, and ease of use, this kit is an essential tool for demanding barcode scanning tasks.
Kit Components:
- DataMan 8700DQ Corded Handheld RS-232 Reader: Built for well-marked DPM applications, offering strong DPM reading performance.
- RS-232 Firmware Update Cable (DMC-HH-RS232-USB): Facilitates firmware updates for the 8700DX reader using RS-232 communication.
Please Note: Connection cable sold separately
Key Features of the DataMan 8700DQ Corded Handheld RS-232 Reader:
- Good DPM Reading Performance: Effectively reads well-marked Direct Part Marking (DPM) codes for industrial traceability.
- White Diffuse Lighting: Provides optimal illumination for various barcode scanning applications.
- HDR (High Dynamic Range): Ensures clear scanning in challenging lighting environments.
- PowerGrid: Decodes poorly printed or damaged codes with accuracy, minimizing production line downtime.
- 1.6MP Resolution: High-resolution imaging for accurate barcode recognition, crucial for inventory management and quality assurance.
- ISO 16750-5, Oil Resistant: Resilient against harsh conditions, including resistance to oil.
- IP67 Rated: Dust tight and water immersion protection, ideal for various environments.
- Drop Test: Withstands multiple drops from 2.5 meters, ensuring durability.

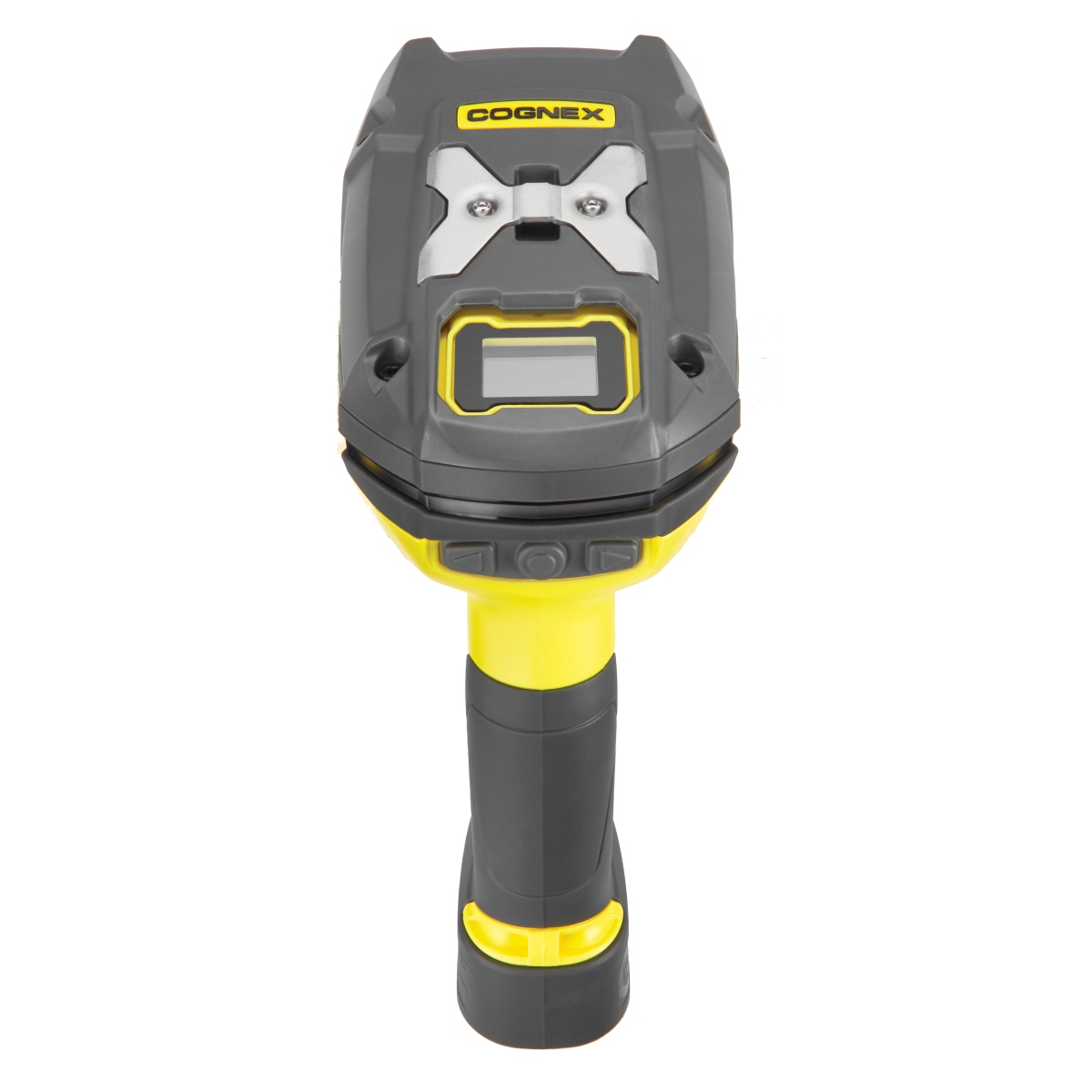

- OLED Display: Intuitive interface for easy setup and configuration.
- 360 Degree Ring Light, Beeper, Vibration Grip, and LED On-Axis Aimer: Enhance user experience and efficiency.
Power Options:
- External Power Supply (sold separately): Utilize an external power supply for extended operation time (requires DMC-HH-RS232-02C or DMC-HH-RS232-05C, sold separately).
- Power over DB9 Pin 9 (sold separately): Alternatively, power your device via the DB9 connector (requires DMC-HH-RS232P-02C, sold separately).
Firmware Update Cable: The firmware update cable enables seamless firmware updates for the 8700DX reader using RS-232 communication. It provides an RS-232 (reader side) to USB (PC side) connection, allowing users to connect in Setup Tool. Please note that it is specifically designed for firmware updates and not recommended for general-purpose use.
Experience exceptional performance and reliability with the DataMan 8700DQ Corded Handheld RS-232 Reader Kit. Whether in manufacturing, warehousing, or logistics, this kit is your ultimate solution for demanding DPM barcode scanning needs.
